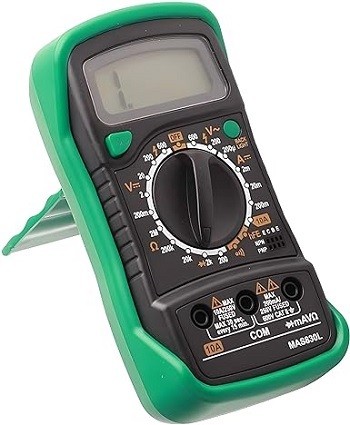

MAS830L Mini Handheld LCD Display Digital Multimeter DC Current Tester Backlight Data Hold Continuity Diode hFE Test
AS830L
Features
● Display 2000 counts
● Diode Open Voltage 3.0V
● Data Hold
● Low Battery Display
● Continuity Buzzer <70 ±30Ω
● Display Backlight
Specifications
Range
Resolution
Accuracy
DC Voltage
200mV/2V/20V/200V
600V
0.1mV/1mV/10mV/0.1V
1V
±(0.5%+3)
±(0.8%+5)
AC Voltage
200V/600V
0.1V/1V
±(1.2%+10)
DC Current
20μA
200μA/2mA
20mA
200mA
10A
0.01μA
0.1μA/1μA
10μA
0.1mA
10mA
±(1.0%+3)
±(1.0%+5)
±(1.5%+5)
±(3.0%+10)
Resistance
200Ω
2kΩ/20kΩ/200kΩ
2MΩ
0.1Ω
1Ω/10Ω/0.1kΩ
1kΩ
±(0.8%+2)
General
● Power Supply : 1x9V 6F22 Battery(Delivery does not include)
● Product Size : 145mmx76mmx40mm/5.7"x3"x1.57"
● Product Weight : 202g/0.44lb
● Certificate : CE / ETL / RoHS
Accessories
● Test leads
● User's manual
